Universal grinders

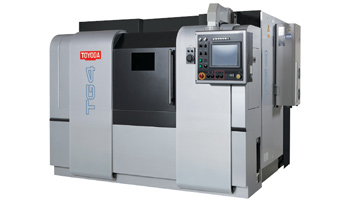

  • TG4 grinding center

    ■ Features the TOYODA STAT BEARING.

    ■ Integrates the processes of two machines into one with a combination function.

    ■ Accuracy and speed at the highest level.

    世俱杯app官方入口:Detail >>

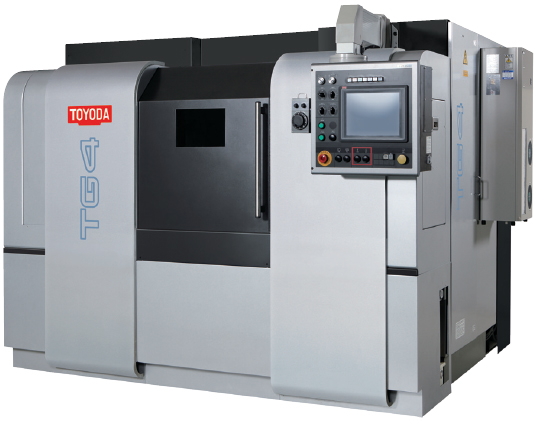

    A combination grinder that combines high accuracy and high efficiency to achieve the fastest wheelhead swivel speed in the world.

    ■ Features the TOYODA STAT BEARING.

    ■ Integrates the processes of two machines into one with a combination function.

    ■ Accuracy and speed at the highest level.

      TG4
    Distance between centers(mm) 320/630
    Max. grinding diameter(mm) O.D. :φ300, I.D. :φ120
    Grinding wheel O.D.(mm) φ405［φ350※］
    Wheel surface speed(m/s) 30［45/60/80］［30/45/60/80］※
    [ ] shows optional specifications.
    ※ shows CBN wheel specifications.

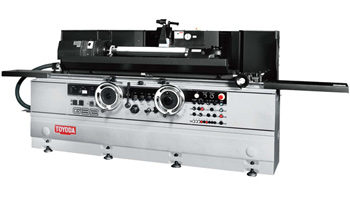

  • G32 hydraulic general purpose cylindrical grinder

    ■ Features the TOYODA STAT BEARING.

    ■ Hydraulic slide with high accuracy and smooth movement.

    ■ Device arrangement is best suited to manual grinding.

    Detail >>

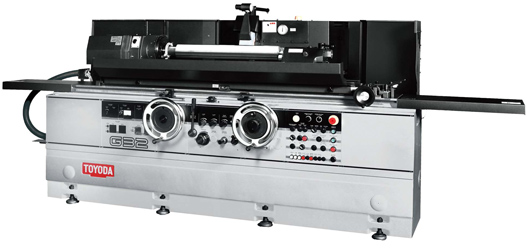

    Best-selling grinder condensing the skills of expert workmen.

    ■ Features the TOYODA STAT BEARING.

    ■ Hydraulic slide with high accuracy and smooth movement.

    ■ Device arrangement is best suited to manual grinding.

      GOP32 GOS32
    Distance between centers(mm) 500/1,000/1500
    Max. grinding diameter(mm) φ220
    CBN grinding wheel O.D.(mm) φ405
    Wheel surface speed(m/s) 30［45］ 30
    [ ] shows optional specifications.

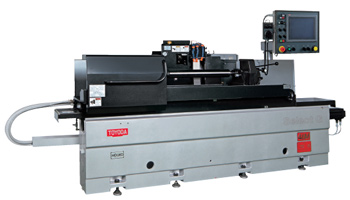

  • SELECTG-Ⅱ CNC cylindrical grinder

    ■ Features the TOYODA STAT BEARING.

    ■ Manual switch between straight and angular.

    ■ φ510 mm grinding wheel.

    世俱杯app官方入口:Detail >>

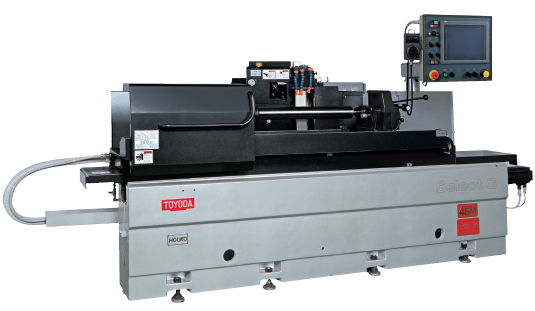

    This flexible grinder is able to switch between straight, angular and internal grinding.

    ■ Features the TOYODA STAT BEARING.

    ■ Manual switch between straight and angular.

    ■ φ510 mm grinding wheel.

      SelectG-Ⅱ
    Distance between centers(mm) 1,000/1,500
    Max. grinding diameter(mm) φ300
    Grinding wheel O.D.(mm) φ510
    Wheel surface speed(m/s) 30［45］
    [ ] shows optional specification.
