5-axis vertical machining centers
-

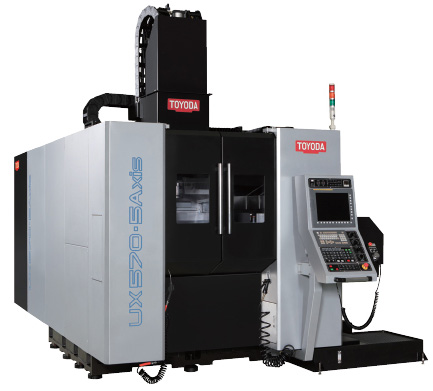

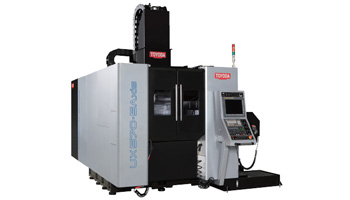

UX570-5Axis vertical machining center
- 世俱杯app官方入口:Detail >>
Ideal for multi-face machining and the machining of complex shape parts.
■ High speed (X, Y, Z axis ) and high rigidity trunnion structure (A, C axis).
■ High rotation speed of 70 min-1 with C axis direct drive table.
■ High responsiveness by Y axis dual ballscrew drive.
UX570-5Axis Table (working plane) size (mm) φ550 X-Axis Travel (mm) 550 Y-Axis Travel (mm) 700 Z-Axis Travel (mm) 500 A-Axis Travel (°) +30 ~ -120 C-Axis Travel (°) 360 Rapid feedrate (m/min) 48（X,Y,Z） Rapid feedrate (min-1) 25（A），70（C） Spindle rotation speed (min-1) 15,000 Spindle nose shape BT No.40 Spindle drive motor (kW) 22/18.5
■ High speed (X, Y, Z axis ) and high rigidity trunnion structure (A, C axis).
■ High rotation speed of 70 min-1 with C axis direct drive table.
■ High responsiveness by Y axis dual ballscrew drive.
