5-axis horizontal spindle machining centers

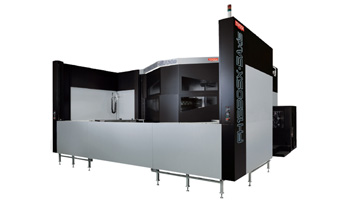

  • FH1250SX-5Axis horizontal spindle machining center

    ■ Large range of workpieces and axis travels in the same class.

    ■ Stable machining accuracy by the tilt spindle.

    ■ Spindle of low heat generation makes the machining of difficult-to-cut material from aluminum to titanium possible.

    Detail >>

    Large-sized parts machining at a top level.

    ■ Large range of workpieces and axis travels in the same class.

    ■ Stable machining accuracy by the tilt spindle.

    ■ Spindle of low heat generation makes the machining of difficult-to-cut material from aluminum to titanium possible.

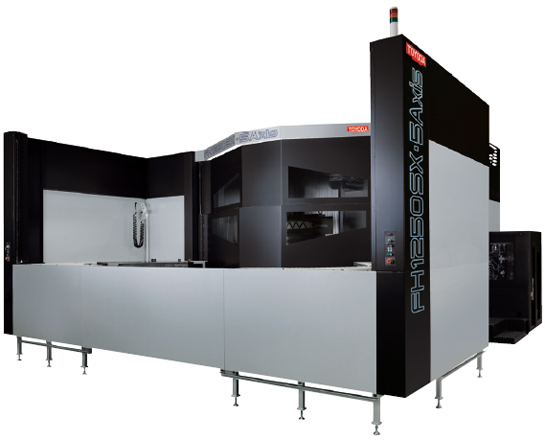

      FH1250SX-5Axis
    Pallet size (mm) 1,250
    X-Axis Travel (mm) 2,200
    Y-Axis Travel (mm) 1,600
    Z-Axis Travel (mm) 1,850
    A-Axis Travel（ °） －100 ～ +45
    Rapid feedrate (m/min) 32（X）, 32（Y）, 42（Z）
    Spindle rotation speed (min-1) 50~10,000
    Spindle nose shape BT No.50
    Spindle drive motor (kW)
    short time/ continous    		 30/25
