Large cylindrical grinders

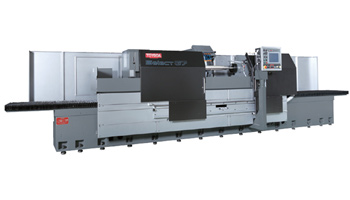

  • SELECTG7 large cylindrical grinder

    ■ Features the TOYODA STAT BEARING.

     ■ One machine can work as the equivalent of two both with straight & angular machining.

    ■ Wide width and high performance grinding with a high rigidity wheel spindle.

    世俱杯app官方入口:Detail >>

    Offering the ultimate package for workpieces.

    ■ Features the TOYODA STAT BEARING.

    ■ One machine can work as the equivalent of two both with straight & angular machining.

    ■ Wide width and high performance grinding with a high rigidity wheel spindle.

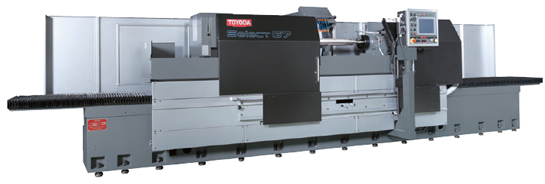

      SELECTG7
    Distance between centers(mm) 1,000/2,500/3,200 4,000
    Max. grinding diameter(mm) φ650
    Grinding wheel O.D.(mm) φ760［φ915/φ1,065※］
    Wheel surface speed(m/s) 30［45］
    Weight between centers(kg) 1,500 3,000
    [ ] shows optional specifications.
    ※ shows CBN wheel specifications.

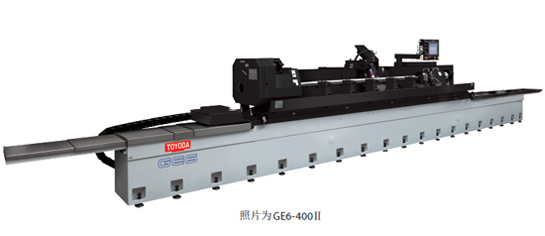

  • GE6-Ⅱlarge cylindrical grinder

    ■ Features the TOYODA STAT BEARING.

    ■ Features a highly accurate, low vibration bed with an X-shape rib structure.

    ■ Abundant range of options for large-sized workpieces processing.

    世俱杯app官方入口:Detail >>

    Ideal intuitive operation for large workpieces.

    ■ Features the TOYODA STAT BEARING.

    ■ Features a highly accurate, low vibration bed with an X-shape rib structure.

    ■ Abundant range of options for large-sized workpieces processing.

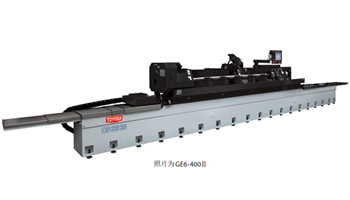

      GE6-Ⅱ
    Distance between centers(mm) 1,600/2,500/3,200/4,000
    Max. grinding diameter(mm) φ550
    Grinding wheel O.D.(mm) φ610［φ760］
    Wheel surface speed(m/s) 30［45］
    Weight between centers(kg) 500［1,000］
    [ ] shows optional specifications.
